ห้องอาบน้ำอากาศสำหรับคนเดี่ยว

Overview

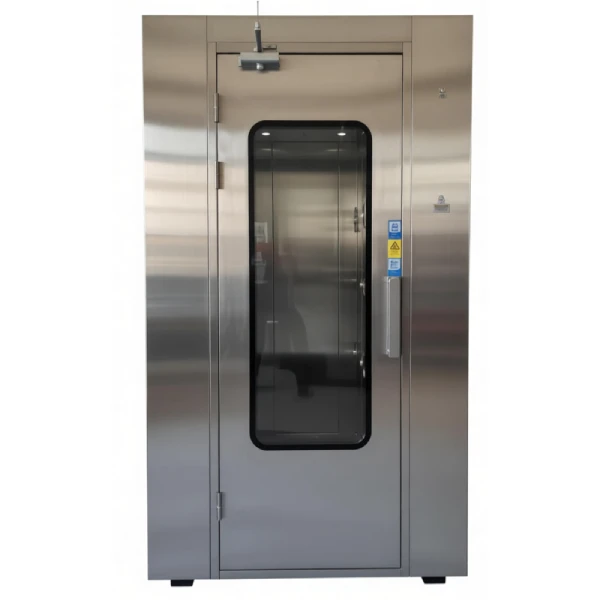

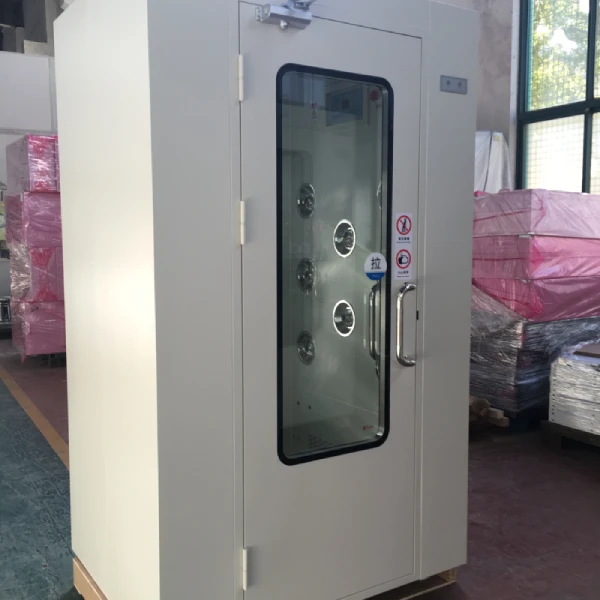

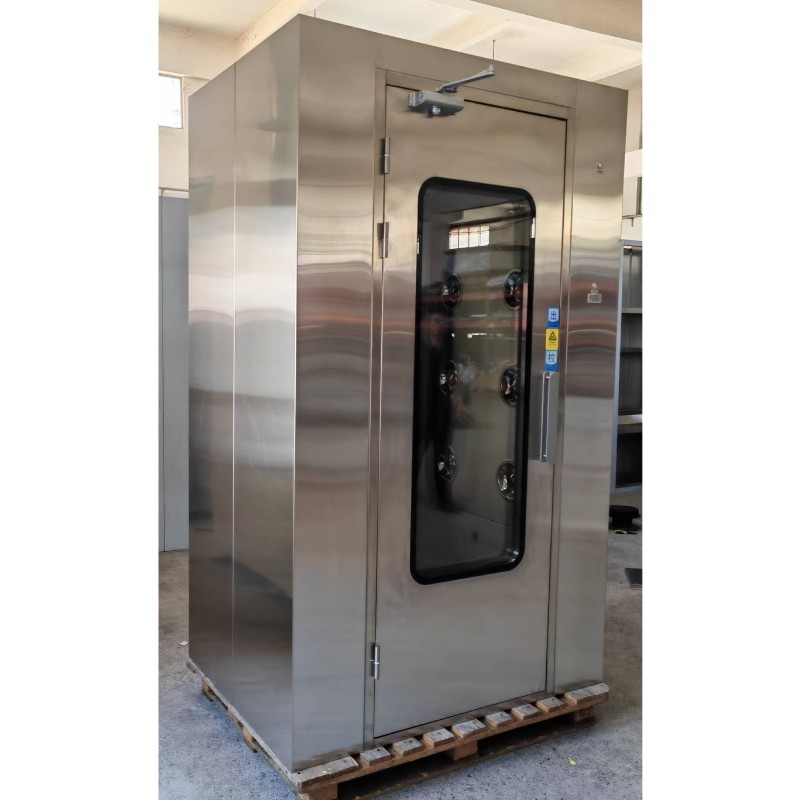

The Single-Person Air Shower Room is a compact contamination control device designed for entry points to cleanrooms and controlled environments. It directs high-velocity HEPA-filtered air through adjustable nozzles to remove dust, particles, and loose fibers from personnel and their garments prior to entering a clean area.

Key Features

• การดำเนินการผู้ใช้เดียว
  Designed for one person per cycle, ideal for low-to-medium traffic cleanrooms (ISO 5 to ISO 8 / Grade A to C).

• High-Efficiency Filtration
  Equipped with HEPA or ULPA filters (≥99.99% efficiency at 0.3 μm or 0.1 μm) to ensure particle-free jet streams.

• Interlocked Doors
  Magnetic or electronic interlocks prevent both doors from opening simultaneously, maintaining cleanroom pressure and preventing cross-contamination.

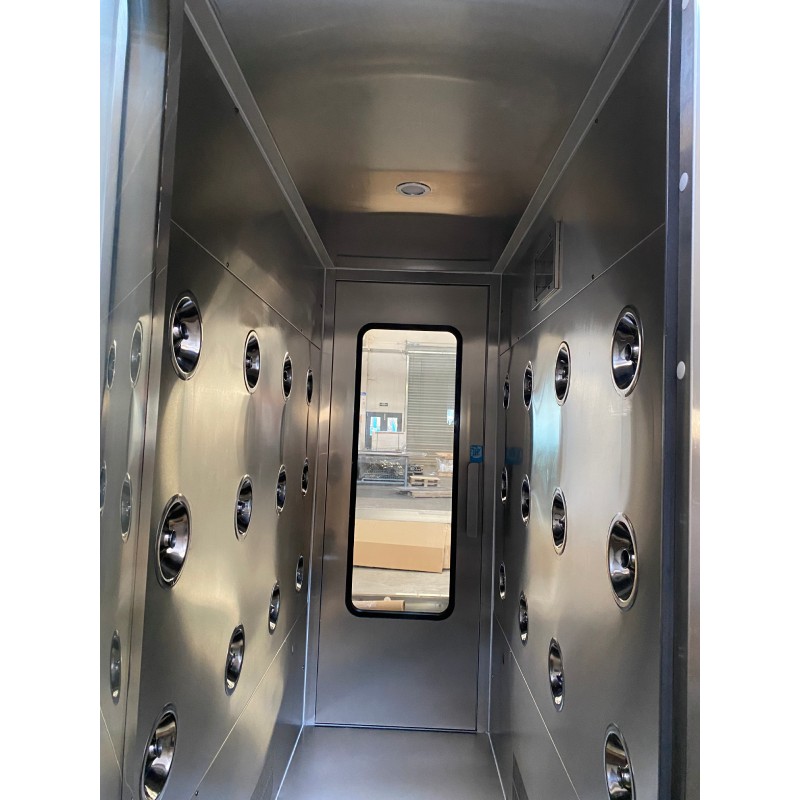

• หัวฉีดอากาศปรับได้
  หัวฉีดสแตนเลสหรือ ABS ตั้งอยู่ที่มุมต่างๆ เพื่อให้แน่ใจว่าความครอบคลุมของร่างกายสมบูรณ์ (การกวาดอากาศจากด้านบนถึงด้านล่าง)

• Programmable Logic Control (PLC)
  User-friendly control panel with cycle duration (adjustable 10–99 seconds), emergency stop, and auto-start function.

• Durable Construction
  Cold-rolled steel (CRS) with electrostatic powder coating or 304 stainless steel for cleanroom compatibility and corrosion resistance.

• Energy-Efficient Design
  Low-noise blower and timer-controlled shutdown to reduce power consumption during idle periods.
